What a High-Cycle Concrete Vibrator Does

A high-cycle Concrete Vibrator operates fundamentally differently thanstandard flex-shaft models. Its defining characteristic is that the electric motor sits directly inside the vibrator head rather than in a separate power unit. The term "high-cycle" refers to the elevated electrical frequency required to run it. These systems typically use an inverter or frequency converter to step standard 60 Hz site power up to 200 Hz or more. Because vibrations per minute (VPM) roughly equals the frequency in Hertz multiplied by 60, a 200 Hz frequency translates to a consistent rate of around 12,000 VPM, even under heavy load.

When reviewing manufacturer concrete vibrator frequency specifications, maintaining a high VPM without a significant RPM drop is crucial for moving stiff, low-slump mixes quickly. Because there is no rotating flexible shaft, less power is lost between the plug and the pour, providing highly efficient energy transfer directly into the mix. However, because the motor is housed in the head, high-cycle vibrator heads are heavier and bulkier than standard wands. Additionally, the required frequency converter adds setup complexity and a potential failure point on the jobsite.

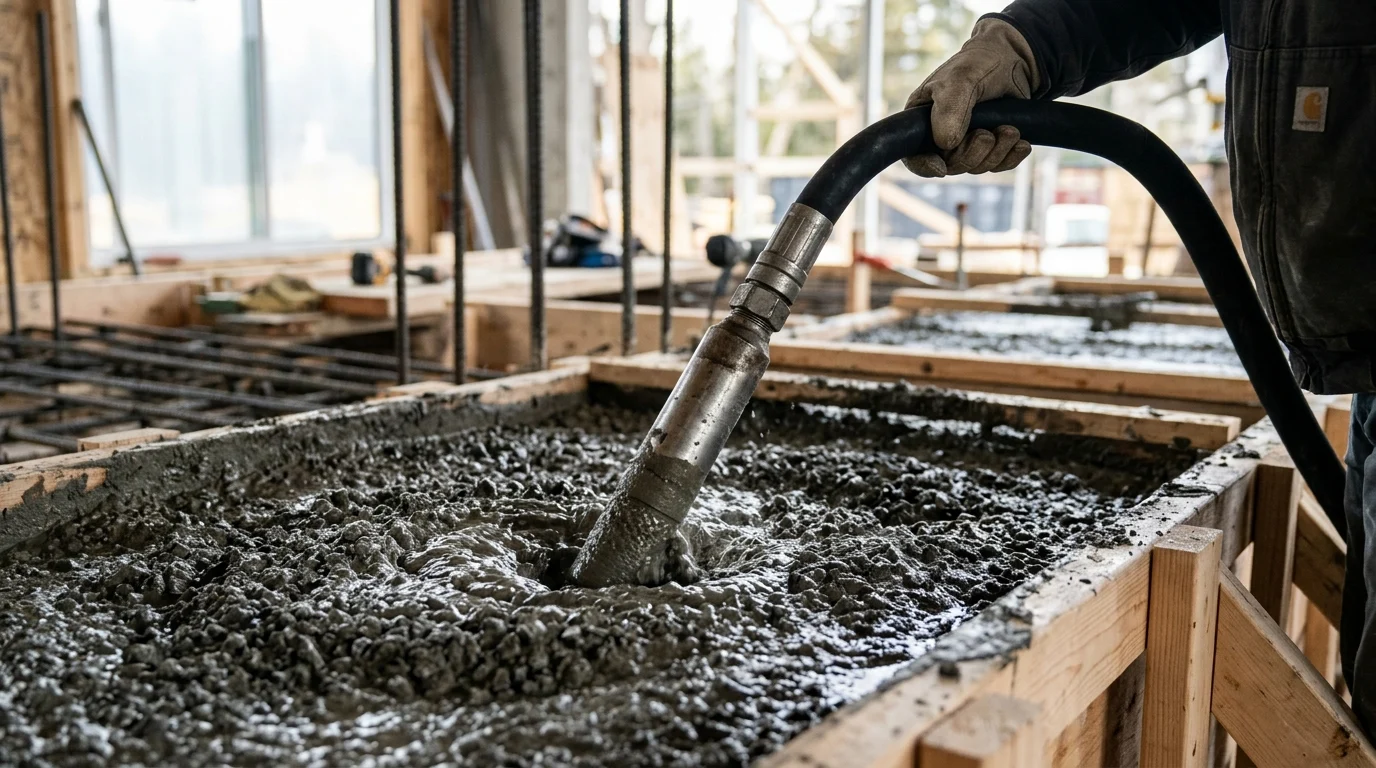

Where Handheld Wand Vibrators Still Fit

Standard handheld wand vibrators—usually utilizing a flex-shaft design—remain a staple on most jobsites. They rely on a universal motor spinning a flexible drive shaft that turns an eccentric weight in the head. They generally peak around 10,000 VPM unloaded, though this can drop noticeably when submerged in thick concrete.

Even so, they are incredibly lightweight, highly portable, and practical for residential flatwork, footings, or smaller retaining walls. Unlike high-cycle systems, standard wands usually plug directly into site power or a standard Generator, eliminating the need to drag around a frequency converter box. While contractors occasionally use pneumatic or gas-powered backpack vibrators for specific off-grid applications, electric flex-shaft wands remain the most common handheld alternative, offering superior maneuverability in extremely tight forms.

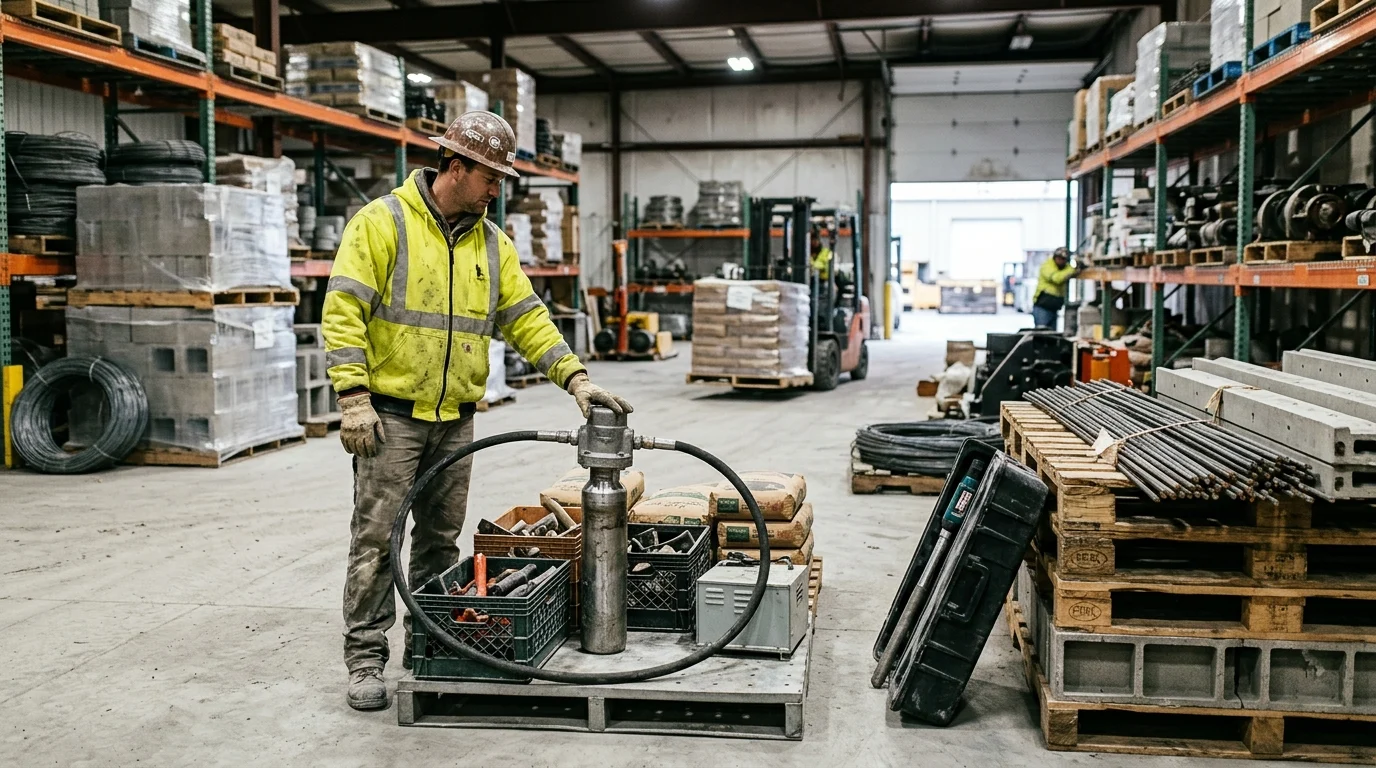

Key Factors for Choosing the Right Vibrator

Specifying equipment for a new project requires evaluating the mix design, rebar congestion, and crew size to determine the necessary consolidation power. Following recognized industry guidance, such as ACI 309 (Guide for Consolidation of Concrete), is critical. Proper operator technique is just as important as the tool's frequency to avoid risks like over-vibration and aggregate segregation.

Frequency, Amplitude, Head Size, and Slump

To get this right, you must balance frequency, amplitude, head size, and the concrete's slump. High frequency liquefies the mortar, while high amplitude moves the heavy aggregate. Keep in mind that the figures in the table below are typical ranges only; crossovers exist across both tool types depending on the specific model. High-cycle vibrators are also available in smaller head sizes and can successfully consolidate flowable mixes, just as powerful wand vibrators can often handle low-slump concrete.

If dealing with a stiff 2-inch slump on a bridge deck, the sustained power of a high-cycle unit is usually required. If pouring a 5-inch slump residential foundation wall, a standard 1.5-inch handheld wand generally has plenty of kick to get the job done.

Productivity, Fatigue, Cost, and Maintenance

Beyond raw specifications, financial and ergonomic elements must be factored in. A high-cycle setup is a larger upfront investment, requiring the head, hose, and a frequency converter. Meanwhile, a reliable handheld flex-shaft kit is highly economical initially.

However, the maintenance math flips over time. Flex shafts can burn out or snap if bent too sharply, whereas high-cycle units eliminate that mechanical wear point entirely. Ergonomically, there is a trade-off: while the high-cycle head itself is heavier, dragging its thick electrical cable is often less fatiguing than wrestling with a rigid, vibrating mechanical shaft for an eight-hour shift. Regardless of the type, strict electrical safety must be observed. For high-cycle units, this includes ensuring waterproof connectors are intact, properly grounding the converter box, and maintaining cable strain relief, in addition to standard GFCI protection and careful cable management to prevent trip hazards.

How to Decide for Your Jobsite

Making the final call when the concrete trucks are scheduled comes down to matching the tool's capabilities to the specific structural element being poured. Instead of just looking at the specs, you have to evaluate how the vibrator will actually be applied in the forms.

Selection Steps for Slabs, Walls, and Columns

The selection process changes depending on the formwork and the vibrator's "radius of action"—the radial distance from the center of the inserted head to the outer edge of the visible area of concrete that is actively consolidated. In the field, contractors determine this actual radius by observing where air bubbles stop surfacing and the concrete takes on a distinct sheen.

For large slabs, you generally want the biggest head diameter the rebar spacing will allow to maximize this radius. A common rule of thumb is to space insertion points about 1.5 times the radius of action apart (e.g., if the observed radius is 14 inches, insertions should be spaced about 21 inches apart).

Key Takeaways

• Use a high-cycle concrete vibrator when a stiff or low-slump mix requires consistent high-frequency consolidation around 12,000 VPM.
• Choose a handheld wand vibrator for smaller pours, tight forms, and jobs where light weight and direct plug-in power are more valuable than maximum output.
• Remember that a 200 Hz high-cycle system can deliver about 12,000 VPM, while many standard flex-shaft wands peak near 10,000 VPM unloaded and may drop under load.
• Factor in the frequency converter when planning high-cycle vibrator use because it improves performance but adds setup complexity and a possible jobsite failure point.
• Match vibrator frequency, amplitude, head size, and concrete slump, and follow ACI 309 guidance to reduce honeycombing, over-vibration, and segregation.
