How Long Should an Internal Concrete Vibrator Run for Proper Compaction?

Proper consolidation is one of the fastest ways to protect concrete strength, density, and long-term durability—but timing matters. Run an Internal Concrete Vibrator too briefly and trapped air can remain inside the pour; run it too long and the mix may segregate, leaving weak zones and surface defects. In many structural applications, the practical target is measured in seconds, not minutes, yet the right duration depends on slump, aggregate, reinforcement congestion, and vibrator performance. This guide explains the typical vibration window, the visual signs that compaction is complete, and how contractors can avoid both honeycombing and over-vibration on site.

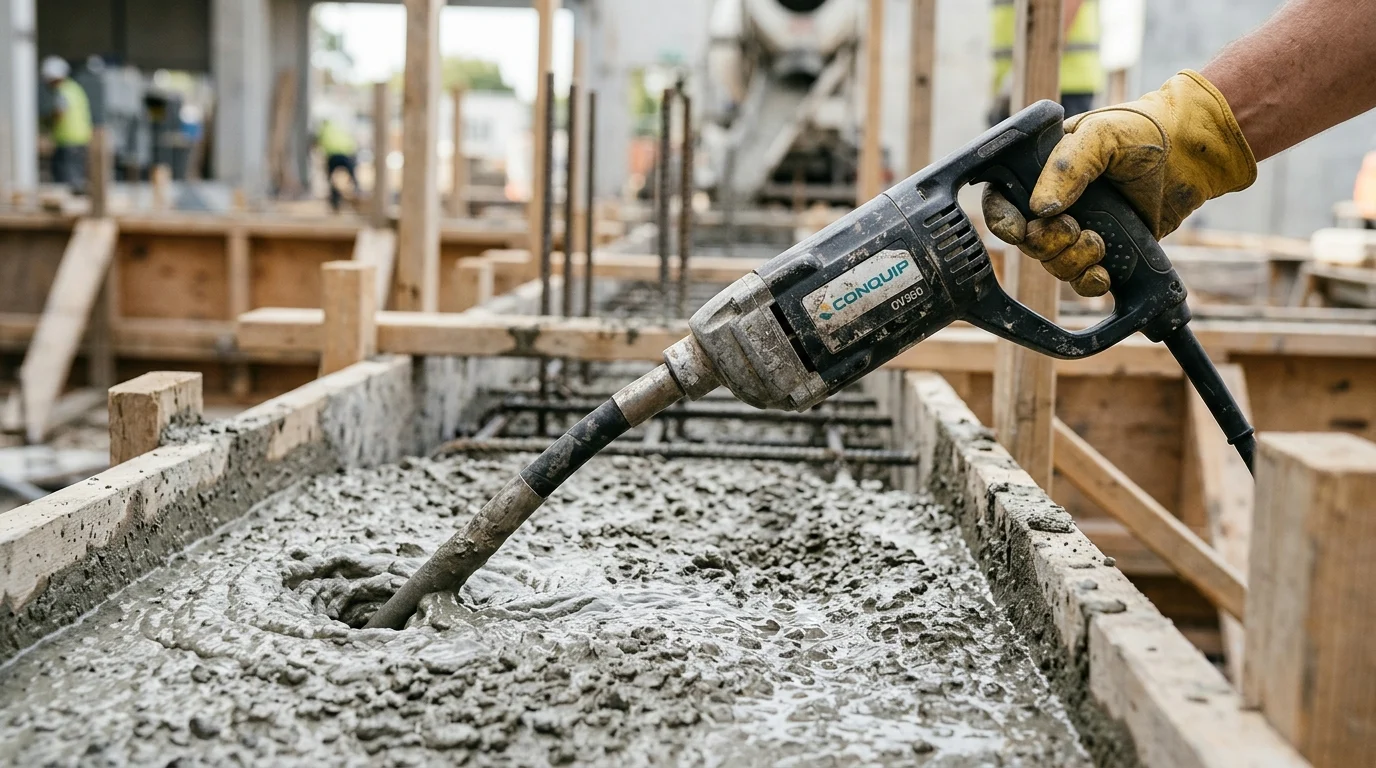

How Long Should an Internal Concrete Vibrator Run

Achieving the designed compressive strength and durability of a concrete structure relies heavily on the proper consolidation of the freshly placed mix. When concrete is initially deposited into formwork, it typically contains between 5% and 20% entrapped air by volume, depending on the mix design, aggregate gradation, and placement method. An internal concrete vibrator, also known as a spud vibrator, is the primary tool used to expel this entrapped air and compact the material into a dense, uniform mass.

The fundamental question of how long an internal concrete vibrator should run per insertion does not have a single universal answer, as it depends on complex interactions between the rheology of the concrete and the mechanical output of the equipment. However, precision is critical: engineering studies demonstrate that for every 1% of entrapped air left in the consolidated concrete, the final compressive strength is reduced by approximately 5%. Consequently, structural engineers and concrete placement contractors must establish rigorous vibration protocols to ensure structural integrity without inducing material defects.

Why Vibration Time Affects Concrete Strength

The duration of vibration directly governs the microstructural development of the concrete matrix. When an internal vibrator is inserted into fresh concrete, it transmits high-frequency mechanical energy that temporarily overcomes the internal friction between aggregate particles. This process, known as liquefaction, transforms the stiff concrete mass into a fluid state, allowing coarse aggregates to settle into a dense configuration while lighter entrapped air bubbles rise to the surface.

If the vibration time is insufficient, the concrete fails to fully liquefy. This leaves voids and honeycombing within the matrix, drastically increasing permeability and exposing reinforcing steel to future corrosion. Conversely, excessive vibration time forces the heavier coarse aggregates to sink to the bottom of the lift while the cement paste and lighter fine aggregates migrate to the top. This segregation compromises the structural homogeneity of the element, leading to a weak, dusting surface layer and a localized reduction in load-bearing capacity.

Practical Rule of Thumb for Run Time

While site-specific variables dictate the exact duration, the American Concrete Institute (ACI) provides a widely accepted baseline in the ACI 309R standard. For a standard structural mix with a moderate slump, the practical rule of thumb is to vibrate each insertion point for 5 to 15 seconds. This window is generally sufficient to achieve full liquefaction and allow the majority of entrapped air to escape to the surface.

Operators must treat this 5 to 15-second range as a starting parameter rather than a rigid mandate. The actual time required within that band depends heavily on the specific workability of the concrete. A highly plasticized mix may only require 3 to 5 seconds to consolidate fully, whereas a stiff, low-slump mix intended for slip-form paving might require the full 15 seconds, or even up to 20 seconds under highly congested reinforcement conditions. Continuous visual monitoring remains the ultimate determinant of when the run time for a specific insertion is complete.

What Proper Concrete Compaction Looks Like

Because fixed timers are rarely practical on active construction sites, operators must rely on visual and auditory indicators to determine when proper compaction has been achieved. The goal of vibration is to reach 98% to 100% of the theoretical maximum density of the concrete mix, effectively reducing the entrapped air content to less than 2% by volume. Recognizing the exact moment the concrete transitions from an aerated state to a fully consolidated state prevents both structural deficiencies and aesthetic surface defects.

How to Define Adequate Consolidation

Adequate consolidation is technically defined as the point at which the concrete has been molded around all reinforcing steel and embedded fixtures, completely filling the formwork without any macro-voids or segregation. In this state, the mortar fraction of the mix is evenly distributed, binding the coarse aggregates in a homogenous suspension.

Engineers verify adequate consolidation through post-placement testing, such as extracting core samples and performing petrographic analysis or density testing. However, during the active placement phase, consolidation is defined by the cessation of volumetric reduction. As the vibrator runs, the surface level of the concrete lift will visibly drop as entrapped air escapes and the aggregates pack tightly together. Once this downward settlement halts, the primary phase of consolidation is complete.

Field Signs of Proper Vibration

Skilled operators look for three distinct field signs to determine that an internal concrete vibrator has run for the correct amount of time. First, the surface of the concrete takes on a glistening, wet appearance as a thin layer of mortar rises to the top. Second, the rapid eruption of large entrapped air bubbles at the surface slows down and ultimately ceases. While a few microscopic bubbles may continue to appear, the absence of large, breaking bubbles indicates that the internal voids have been eliminated.

Auditory cues are equally important. When an internal vibrator is initially plunged into stiff concrete, the motor labors against the high mechanical resistance, causing the pitch of the motor to drop significantly. As the concrete liquefies and internal friction decreases, the load on the motor lightens. The frequency of the vibrator will audibly rise and stabilize into a constant, high-pitched hum. This stabilization of pitch, combined with the visual indicators, signals that the operator should begin withdrawing the vibrator head.

Defects from Under- or Over-Vibration

Deviating from the optimal run time produces distinct structural and aesthetic defects. Under-vibration primarily results in honeycombing—areas where coarse aggregate is exposed without sufficient mortar to bind it—and bugholes, which are small surface voids caused by trapped air against the formwork face. Additionally, failing to vibrate long enough can result in cold joints if the current lift does not properly meld with the previously placed, still-plastic lift.

Over-vibration introduces equally severe, though visually different, defects. Prolonged vibration causes excessive bleeding, where water is forced to the surface, increasing the local water-to-cement ratio and weakening the top layer. It also causes sand streaking along the formwork and severe aggregate segregation. Furthermore, over-vibrating deep lifts can drastically increase the hydrostatic pressure against the formwork, sometimes generating lateral pressures exceeding 150 to 300 pounds per square foot per foot of depth, which can lead to catastrophic formwork blowouts.

Factors That Affect Vibrator Run Time

The optimal run time for an internal concrete vibrator is never static; it fluctuates based on the physical properties of the concrete mix and the mechanical specifications of the vibrator being used. A standardized protocol must account for these variables to ensure operators do not blindly apply a 10-second rule to a mix that requires an entirely different approach. Understanding how material rheology and equipment dynamics interact is essential for establishing accurate vibration procedures.

Slump, Mix Design, Aggregate Size, and Admixtures

The slump of the concrete is the most significant material factor influencing run time. A high-slump mix (e.g., 6 to 8 inches), often achieved through the use of high-range water-reducing (HRWR) admixtures, possesses high inherent fluidity. Such mixes require minimal vibrational energy to liquefy, often needing only 3 to 5 seconds per insertion. Conversely, a stiff, low-slump mix (e.g., 1 to 3 inches) exhibits high internal friction and may require 10 to 15 seconds, or more, to achieve the same level of consolidation.

Aggregate size and mix design also dictate vibration duration. Mixes with a high volume of large, angular coarse aggregates (such as crushed stone) interlock tightly and resist liquefaction, necessitating longer vibration times compared to mixes utilizing smooth, rounded river rock. Additionally, the inclusion of supplementary cementitious materials (SCMs) like silica fume or fly ash alters the cohesiveness of the paste. Silica fume, for instance, increases the stickiness of the mix, slowing the upward migration of entrapped air bubbles and requiring a slight extension in vibrator run time.

Vibrator Head Diameter, Frequency, and Amplitude

The mechanical output of the internal vibrator directly determines how quickly it can transfer energy into the concrete mass. This output is defined by three interrelated specifications: head diameter, frequency (measured in vibrations per minute, or VPM), and amplitude (the peak-to-peak displacement of the vibrator head). High-frequency vibrators (typically operating between 8,000 and 12,000 VPM) are highly effective at liquefying the mortar matrix, while high-amplitude vibrators (ranging from 0.02 to 0.08 inches) excel at mobilizing heavy coarse aggregates.

The diameter of the vibrator head establishes its Radius of Action (ROA)—the lateral distance from the center of the vibrator to the edge of the fully consolidated zone. A small 1-inch diameter head may only have an ROA of 3 to 5 inches, requiring closely spaced insertions and longer dwell times to affect the surrounding concrete. A larger 2.5-inch head can project an ROA of 10 to 14 inches, transferring energy much more rapidly and reducing the necessary run time per insertion. Using an undersized vibrator for a massive pour will inevitably lead to under-vibration, regardless of how long the operator leaves the head in the mix.

How to Compare Run Time Requirements

To optimize efficiency and quality, contractors must match the vibrator specifications to the placement volume and mix design. Comparing the run time requirements involves calculating the total volume of concrete influenced per insertion and adjusting the dwell time to match the specific equipment. The table below illustrates the relationship between vibrator head size, typical frequency, radius of action, and the baseline run time required for a standard 4-inch slump concrete mix.

How to Use an Internal Concrete Vibrator Correctly

Even with the correct run time calculated and the optimal equipment selected, improper physical technique can completely negate the benefits of internal vibration. The mechanics of inserting, holding, and withdrawing the vibrator head dictate the uniformity of the consolidation. Operators must be trained to execute a systematic grid pattern rather than haphazardly plunging the vibrator into the mix.

Insertion Spacing and Penetration Depth

The spatial arrangement of insertions must ensure that the zones of influence overlap, leaving no unvibrated gaps. The industry standard is to space insertions at a distance equal to 1.5 times the Radius of Action (ROA). For example, if a 2-inch vibrator head yields a 10-inch ROA, the operator should space the insertion points no more than 15 inches apart. The vibrator must always be inserted vertically; dragging the vibrator horizontally through the mix to move concrete is a severe procedural error that guarantees aggregate segregation.

Penetration depth is equally critical, particularly when concrete is placed in multiple lifts. The vibrator head must pass entirely through the current lift and penetrate a minimum of 6 inches into the underlying, previously placed lift (provided it is still plastic). This deep penetration knits the two layers together, eliminating the risk of a cold joint and ensuring monolithic structural integrity. The operator must rapidly plunge the vibrator to the target depth to avoid prematurely vibrating the upper layer, which could trap air in the lower strata.

How to Adjust Technique on Site

Field conditions rarely match the perfect scenarios outlined in technical manuals, requiring operators to adjust their technique dynamically. In areas with highly congested rebar, standard large-diameter vibrators may not fit. Operators must switch to smaller-diameter heads, which subsequently reduces the ROA and necessitates a tighter insertion spacing and a slightly extended run time per point.

The withdrawal rate of the vibrator is just as important as the dwell time. Once the concrete is fully liquefied (typically after the 5 to 15-second dwell), the operator must extract the head slowly and steadily. The standard withdrawal rate is approximately 1 to 3 inches per second. This slow extraction allows the concrete to flow back together behind the vibrator head, filling the temporary hole. If the vibrator is yanked out too quickly, it can leave a permanent void, known as a "rat hole," trapped within the hardened concrete.

Quality-Control Checks During Placement

Supervisors and quality-control inspectors must monitor the placement process continuously to ensure the vibration technique aligns with structural requirements. One critical check is verifying that lift thicknesses do not exceed the length of the vibrator head. Standard practice dictates maximum lift heights of 12 to 20 inches. Attempting to vibrate a 36-inch lift with a 14-inch vibrator head will inevitably leave the bottom of the lift unconsolidated.

Quality control also extends to monitoring the equipment and the operator. Vibrators operating outside their specified frequency range (due to motor wear or power supply drops) will fail to liquefy the concrete efficiently, requiring longer run times that disrupt the placement schedule. Furthermore, prolonged exposure to high-frequency vibration poses significant ergonomic risks to operators, such as Vibration White Finger (VWF). Compliance with safety standards, such as the ISO 5349 limits for hand-arm vibration exposure, requires rotating operators during extensive, high-volume pours to maintain both technique quality and worker safety.

How to Set the Right Vibration Procedure

Transitioning from theoretical guidelines to a site-specific vibration procedure requires a structured approach. Relying solely on operator intuition is insufficient for large-scale commercial or infrastructure projects where structural failure is unacceptable. Engineering teams must establish a definitive vibration protocol that balances the physical demands of the concrete mix with the logistical realities of the construction schedule.

Using Specifications, Trials, and Mockups

The foundation of any customized vibration procedure begins with the project specifications and pre-construction mockups. Before the primary structural placement begins, contractors should construct a mockup that replicates the most challenging aspects of the formwork, including maximum rebar congestion and full lift depths. During this trial, operators apply the proposed vibration times and techniques using the exact mix design approved for the project.

Once the mockup concrete has cured, it is stripped of its formwork for visual inspection of the surface finish. More importantly, engineers extract core samples to undergo laboratory testing. These cores are analyzed to ensure they meet the target compressive strength (e.g., 4,000 psi or higher) and achieve the required density metrics. If petrographic analysis reveals entrapped air exceeding the 2% threshold, the vibration run time must be increased, or the insertion spacing must be tightened, before the actual project placement commences.

Balancing Productivity and Durability

Establishing the right run time also requires balancing placement productivity with long-term durability. In high-volume placements, such as continuous mat foundation pours exceeding 50 cubic yards per hour, a single operator vibrating each insertion point for 15 seconds will rapidly become a bottleneck. The concrete placement rate will outpace the consolidation rate, leading to rushed vibration and subsequent defects.

To maintain the required vibration duration without sacrificing productivity, contractors must scale their equipment and workforce. Instead of reducing the run time per insertion, the solution is to deploy multiple vibrator operators working in tandem. By dividing the placement area into distinct zones, operators can strictly adhere to the engineered 5 to 15-second dwell times and the 1 to 3-inch per second withdrawal rates, ensuring that the demand for speed does not compromise the structural density of the concrete.

Final Decision Framework for Run Time

The final decision framework for determining vibrator run time synthesizes empirical testing with field observations. First, the baseline duration is established through ACI guidelines and confirmed via pre-construction mockups. Second, the equipment parameters (head diameter, frequency, and ROA) are matched to the specific slump and aggregate size of the daily mix. Finally, operators are trained to use this baseline as a guide while relying on the critical visual cues—surface glistening, cessation of large bubbles, and stabilization of motor pitch—to dictate the exact extraction moment.

By adhering to this comprehensive framework, structural engineers and concrete contractors eliminate the guesswork associated with internal vibration. Enforcing strict controls over insertion spacing, penetration depth, and lift thickness guarantees that the mechanical energy is distributed uniformly. The result is a fully consolidated concrete matrix that meets all design specifications for compressive strength, minimizes permeability, and ensures the maximum possible service life of the structure.

Key Takeaways

• Use 5 to 15 seconds per insertion as the practical starting range for most internal concrete vibrator applications.
• Adjust vibration time based on mix workability, using shorter durations for fluid mixes and longer durations for stiff or heavily reinforced placements.
• Stop vibrating when air bubbles diminish, the surface turns glossy, and the concrete visibly settles around reinforcement and formwork.
• Avoid under-vibration because remaining entrapped air can reduce compressive strength by about 5% for every 1% of air left in the concrete.
• Avoid over-vibration because it can cause segregation, weak surface paste, and uneven aggregate distribution.

Frequently Asked Questions

How long should an internal concrete vibrator run per insertion?

For most structural concrete, run the internal vibrator for about 5 to 15 seconds per insertion. Use the shorter end for flowable mixes and the longer end for stiff or congested placements.

How do I know when concrete vibration is complete?

Stop when large air bubbles stop rising, the surface becomes glossy, the concrete settles around reinforcement, and the vibrator tone stabilizes. Do not rely on time alone.

What happens if I vibrate concrete for too short a time?

Under-vibration can leave entrapped air, voids, and honeycombing. This reduces density, increases permeability, and can weaken compressive strength.

Can you over-vibrate concrete with an internal vibrator?

Yes. Excessive vibration can cause segregation, with coarse aggregate sinking and paste rising. This may create weak surface layers and uneven structural performance.

Does concrete slump affect vibration time?

Yes. High-slump or plasticized concrete may need only 3 to 5 seconds, while stiff, low-slump concrete may require 15 to 20 seconds in difficult placements.
