What Is the Best Concrete Vibrator Needle Size for Slab, Beam, and Foundation Projects?

A Concrete Vibrator needle is small compared with the slab, beam, or foundation it consolidates, but its size can decide whether the pour becomes dense and durable or weak and honeycombed.Needle diameter affects vibration energy, consolidation radius, rebar clearance, and the risk of segregation, so choosing by guesswork can cost time and structural performance. This guide explains how to match vibrator needle size to common project types, from thin slabs and congested beams to heavy foundations. It also outlines the technical factors that matter most—diameter, frequency, amplitude, slump, and reinforcement spacing—so contractors can select the right concrete vibrator for safer, more consistent placement.

Why Concrete Vibrator Needle Size Matters

Proper consolidation of freshly placed concrete is essential. Unconsolidated concrete retains entrapped air voids, which severely compromise the structural integrity, permeability, and durability of the finished element. Industry data indicates that for every 1% of entrapped air remaining in the mixture, the compressive strength of the concrete drops by approximately 5% to 6%. To answer the core question immediately: for thin slabs and highly congested beams, a 1-inch to 1-1/2-inch needle is typically best. For standard industrial slabs, 1-1/2-inch to 2-inch needles are standard. For massive foundations with wide rebar spacing, a 2-1/2-inch to 3-inch needle is recommended.

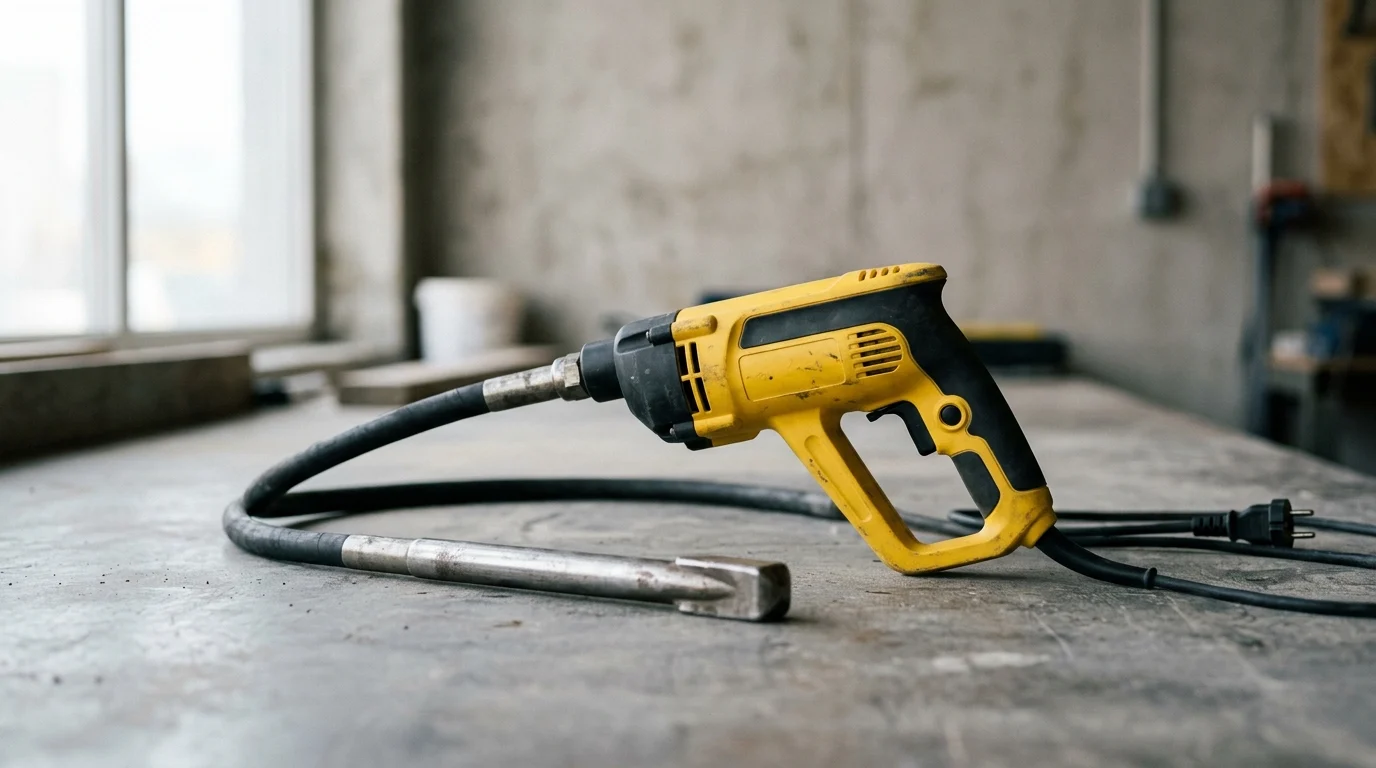

The internal concrete vibrator, commonly referred to as a poker or stinger, is the primary tool used to expel this air. The physical dimensions of the vibrator needle dictate the efficiency of this process, making needle size selection a critical variable in concrete consolidation.

How Needle Diameter Affects Consolidation

The diameter of the vibrator needle directly correlates to the volume of concrete it can effectively consolidate within a given timeframe. Larger needles displace more mass and transfer higher vibration energy to the surrounding aggregate, fluidizing the concrete rapidly. This makes them highly effective for stiff, low-slump mixtures where mechanical agitation is necessary to overcome internal friction.

Conversely, smaller diameter needles generate less displacement but are essential for high-slump mixtures where excessive energy could easily induce aggregate segregation. Using a needle that is too large for a highly fluid mix can force coarse aggregates to sink, leaving a weak, water-heavy paste at the surface.

Why Placement Conditions Influence Needle Size

Placement conditions, specifically formwork geometry and reinforcement detailing, impose strict physical limitations on needle sizing. A vibrator must be able to reach the bottom of the formwork without becoming wedged between rebar grids, post-tensioning cables, or form ties.

Standard industry practice dictates that the selected needle diameter must be small enough to pass through the most congested areas of reinforcement while maintaining a minimum clearance of 1 inch (25 mm). This clearance prevents the vibrator from impacting and displacing the steel, which could compromise the structural cover or damage epoxy coatings.

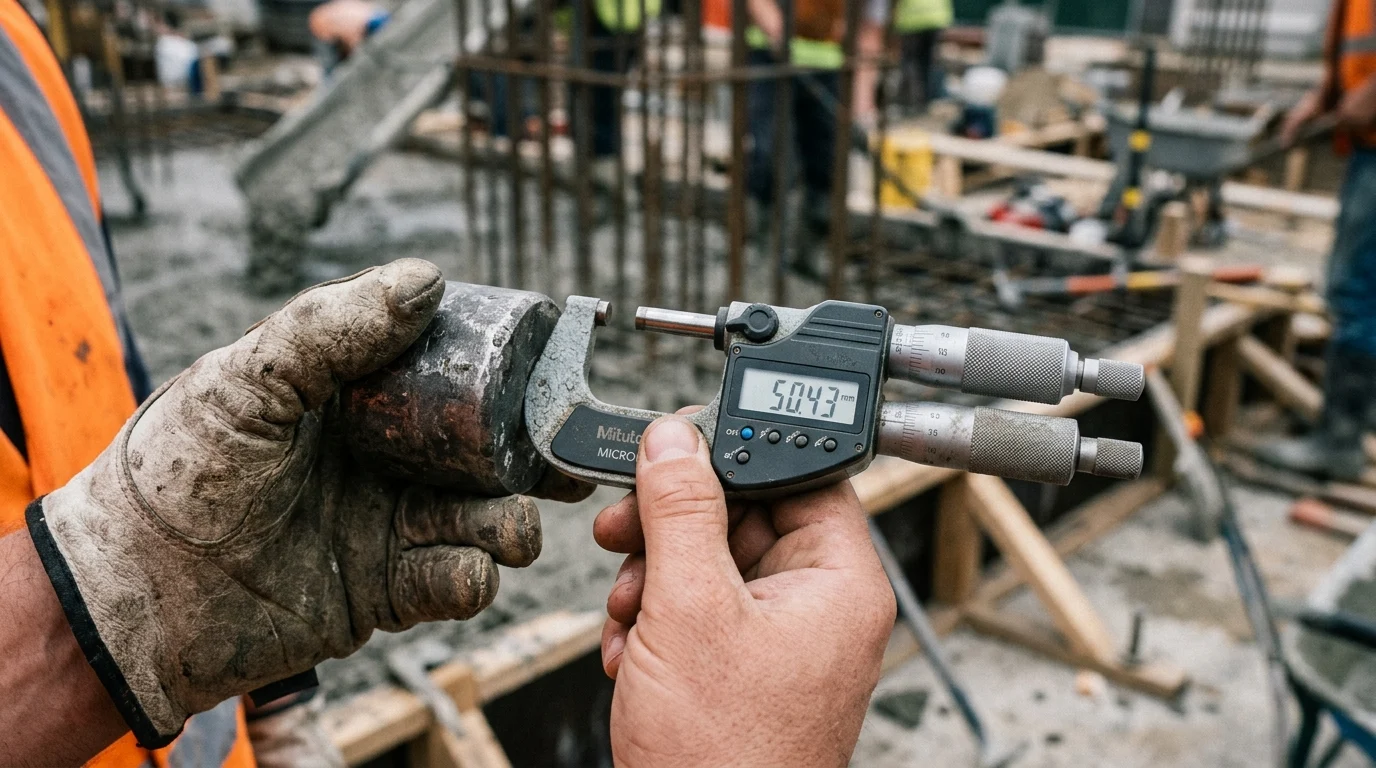

Key Technical Factors in Needle Sizing

Specifying the optimal concrete vibrator requires an understanding of how physical dimensions interact with mechanical performance metrics. Needle size works in tandem with frequency and amplitude to determine the overall consolidation output and the required insertion patterns.

Needle Diameter, Frequency, and Amplitude

Vibrator performance is governed by frequency, measured in vibrations per minute (VPM), and amplitude, which is the maximum distance the needle tip deviates from its resting axis. Smaller diameter needles, ranging from 3/4 inch to 1-1/2 inches (19 to 38 mm), typically operate at higher frequencies (10,000 to 17,000 VPM) and lower amplitudes. This high-frequency action is ideal for fluidizing the cement paste and moving smaller aggregates.

Larger needles, spanning 2 to 3 inches (50 to 75 mm), generally operate at lower frequencies (8,000 to 12,000 VPM) but deliver significantly higher amplitudes. The aggressive whipping action of a high-amplitude needle is required to effectively move coarse, heavy aggregates in stiff mix designs.

Effective Radius of Vibration

The effective radius of vibration, or radius of action, defines the radial zone around the needle where entrapped air bubbles are actively driven to the surface. As a general rule, the radius of action is approximately 4 to 8 times the diameter of the needle, varying based on the concrete's slump and aggregate profile.

Understanding this radius is critical for calculating insertion spacing. A 2-inch (50 mm) needle may yield a 10-inch to 14-inch radius, meaning insertions can be spaced farther apart compared to a 1-inch needle. This broader zone of influence significantly accelerates the placement schedule on large-scale pours.

Note: The performance ranges below are general guidelines based on industry standards like ACI 309. Actual frequency, amplitude, and radius figures vary by manufacturer, so always consult specific equipment specifications.

Best Needle Sizes by Concrete Application

Structural elements exhibit distinct geometric and reinforcement profiles, necessitating specific needle sizes to achieve optimal consolidation. Matching the needle dimension to the application ensures structural integrity and surface uniformity.

Needle Sizes for Thin and Industrial Slabs

Thin residential slabs, elevated decks, and topping slabs typically require smaller needles, generally in the 1-inch to 1-1/2-inch (25 to 38 mm) range. Because these elements have a shallow depth, a larger needle operating at high amplitude risks striking the subgrade or formwork base, potentially damaging the vapor barrier.

For thicker industrial floor slabs, which often span 8 to 12 inches in depth and utilize low-slump concrete to support heavy machinery, a 2-inch (50 mm) needle is preferred. The larger diameter ensures thorough energy transmission across the entire cross-section.

Needle Sizes for Beams, Walls, and Columns

Vertical elements and heavily reinforced horizontal members present unique challenges for consolidation. Highly congested beams, walls, and columns often restrict access, limiting needle selection to 1-inch to 1-1/4-inch (25 to 32 mm) models to maintain the necessary 1-inch clearance. Utilizing a larger needle in these tight zones increases the risk of lodging the equipment within the rebar cage.

Conversely, massive structural elements—including mat foundations, bridge piers, retaining walls, and large, uncongested columns—feature wider rebar spacing and large aggregate sizes. These heavy mass applications demand the higher vibration energy and wider radius of action provided by 2.5-inch to 3-inch (65 to 75 mm) vibrators.

Application-Based Size Comparison

To standardize selection across diverse projects, contractors rely on established correlations between structural applications, mix design slumps, and equipment dimensions. The table below outlines baseline recommendations for matching needle sizes to specific concrete placement scenarios. Again, these are typical ranges; always verify with manufacturer guidelines.

How to Select and Use the Right Needle

Selecting the correct needle size is only the first phase of quality control; the equipment must be deployed using proper operational parameters. Even the most appropriately sized vibrator will fail to consolidate concrete if insertion patterns and extraction speeds are mishandled.

Step-by-Step Selection Process

The selection process should follow a logical sequence prior to the pour:

1. Review the structural drawings to identify the narrowest gap between reinforcing bars.
2. Subtract 1 inch (25 mm) from this measurement to determine the maximum permissible needle diameter based on the clearance rule.
3. Verify the mix design's slump and maximum aggregate size. For stiff, low-slump mixes (under 3 inches), select the largest allowable needle within the clearance constraints. For high-slump mixes, downsize the needle by one step to prevent over-agitation.
4. Consult the vibrator manufacturer's specifications to confirm the chosen needle's frequency and amplitude match the job's requirements.

Insertion Spacing, Lift Depth, and Withdrawal Speed

Proper insertion mechanics rely on the needle's radius of action. As a general guideline, insertions should be spaced at intervals equal to approximately 1.5 times the radius of action to ensure overlapping zones of influence.

The vibrator should be inserted rapidly and vertically. Lift depths should generally not exceed 20 inches (500 mm). Withdrawal speed is typically recommended at about 1 inch per second (25 mm/sec) to allow the concrete to flow back together and close the hole. However, jobsite variability plays a major role: mix temperature, chemical admixtures, and pump height will affect how quickly the concrete responds, so operators must adjust their pace based on visual feedback.

Signs of Under-Vibration and Over-Vibration

Operators must visually monitor the concrete surface to gauge consolidation quality. Under-vibration occurs when the needle is too small or insertion spacing is too wide, resulting in bug holes, honeycombing, and structural voids.

Over-vibration happens when a needle remains stationary for too long or is drastically oversized for a fluid mix. This drives coarse aggregates to the bottom and forces a thick layer of watery cement paste, known as laitance, to the surface, which leads to surface scaling and weakened durability.

Final Decision Factors for Needle Size

Beyond mix design and reinforcement geometry, several logistical and operational factors influence the final specification of concrete vibrator needle sizes on a job site.

When to Use Multiple Needle Sizes

Many complex structural pours necessitate the simultaneous use of multiple needle sizes. Monolithic placements involving integral beam-and-slab assemblies feature highly variable congestion zones.

To address this, operators may utilize a 1-inch (25 mm) needle to consolidate the dense rebar matrices within the beam webs, while simultaneously deploying a 2-inch (50 mm) needle for the expansive, less congested slab sections above. This dual-tool approach ensures optimal energy transfer throughout the formwork.

Equipment, Power Source, and Operator Skill

The choice of needle size is intrinsically linked to the available power source and equipment format. High-cycle electric, pneumatic, and standard flexible-shaft vibrators offer varying torque and endurance thresholds. A massive 3-inch (75 mm) pneumatic vibrator requires substantial continuous airflow, often necessitating a large compressor.

Conversely, 120V electric flex-shaft models are highly portable but may experience voltage drops over long extension cords, reducing the VPM and shrinking the radius of action. Furthermore, operator fatigue must be considered; maneuvering a heavy, large-diameter poker over an 8-hour shift requires significant physical stamina, which may necessitate rotating crews.

Practical Rule for Choosing the Best Needle

The overarching practical rule for optimizing consolidation efficiency is to select the largest diameter vibrator needle that can seamlessly navigate the formwork and reinforcement, while matching the amplitude requirements of the concrete slump.

To finalize your equipment choice on-site, use this quick decision checklist:

• Check the Rebar: What is the tightest gap? Subtract 1 inch to find your maximum needle diameter.
• Check the Slump: Is it a stiff mix (under 3 inches)? Lean toward the largest allowable needle. Is it highly fluid? Downsize by one step.
• Check the Element: Is it a thin slab (1" to 1-1/2" needle), a congested wall (1" to 1-1/4"), an industrial floor (1-1/2" to 2"), or a massive foundation (2-1/2" to 3")?
• Check the Power:Can your site's Generators or compressors support the continuous draw of the selected vibrator size?
• Check the Manufacturer Specs: Does the equipment's rated radius of action and frequency align with ACI 309 guidelines for your specific application?

By following this checklist and precisely overlapping the verified radius of action, contractors can systematically eliminate entrapped air, mitigate surface defects, and guarantee the long-term compressive strength of the structural element.

Key Takeaways

• Use a 1-inch to 1-1/2-inch needle for thin slabs and congested beams where clearance around rebar is limited.
• Select a 1-1/2-inch to 2-inch needle for standard industrial slabs to balance consolidation speed and mix control.
• Choose a 2-1/2-inch to 3-inch needle for massive foundations with wide reinforcement spacing and stiff concrete mixes.
• Maintain at least 1 inch, or 25 mm, of clearance between the vibrator needle and reinforcement to avoid displacing or damaging steel.
• Avoid oversized needles in high-slump concrete because excessive vibration energy can cause aggregate segregation.
• Remember that each 1% of entrapped air left in concrete may reduce compressive strength by roughly 5% to 6%.

Frequently Asked Questions

What needle size is best for thin concrete slabs?

For thin slabs, a 1-inch to 1-1/2-inch vibrator needle is usually best because it consolidates concrete without excessive energy that may cause segregation.

What size concrete vibrator needle should I use for beams?

For reinforced or congested beams, use a 1-inch to 1-1/2-inch needle so it can pass between rebar while maintaining about 1 inch of clearance.

What needle diameter is recommended for foundations?

For large foundations with wide rebar spacing, a 2-1/2-inch to 3-inch needle is typically recommended because it provides stronger vibration energy and a wider consolidation radius.

Can a concrete vibrator needle be too large?

Yes. An oversized needle may not fit through reinforcement, can strike rebar, and may over-vibrate high-slump concrete, causing aggregate segregation and surface paste buildup.

How does entrapped air affect concrete strength?

Entrapped air weakens concrete significantly. As a rule of thumb, every 1% of remaining air can reduce compressive strength by about 5% to 6%.
