What Makes a Backpack Concrete Vibrator Suitable for Job Site Use?

Concrete consolidation is not a finishing detail—it is a structural safeguard. Fresh concrete can contain a significant volume of trapped air, and if that air remains in place, the result may be honeycombing, reduced rebar bond, and lower compressive strength. For crews working on bridge decks, slabs, walls, columns, or congested reinforcement zones, the equipment must do more than vibrate; it must move efficiently with the operator. ABackpack Concrete Vibrator answers that challenge by combining power, reach, and mobility in one self-contained system. This guide explains the practical features that determine whether a unit is truly ready for demanding job site conditions.

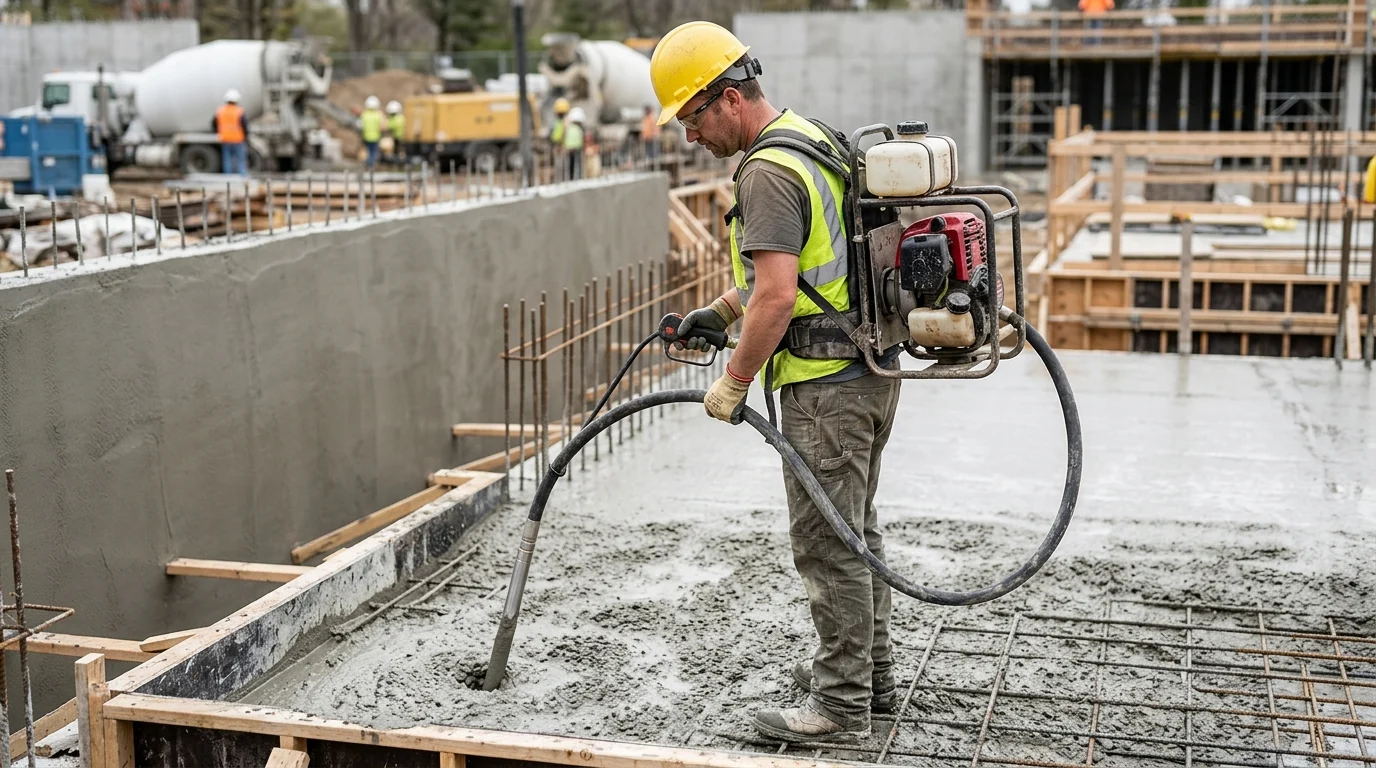

What Defines a Job Site-Ready Backpack Concrete Vibrator

Achieving proper concrete consolidation is a critical structural requirement for any commercial or heavy civil construction project. When concrete is poured, it inherently contains a significant volume of entrapped air—often comprising up to 20% of the total volume. If left un-consolidated, these air voids create honeycombing, reduce the bond strength between the concrete and reinforcing steel, and severely compromise the final compressive strength of the cured structure. To mitigate this, mechanical vibration is applied to fluidize the mix, allowing aggregate to settle and entrapped air to rise to the surface.

For large-scale or complex pours, the logistics of moving vibration equipment across a job site become as critical as the vibration itself. This logistical challenge has driven the adoption of backpack concrete vibrators. By mounting the primary power unit onto an ergonomic harness worn by the operator, these systems eliminate the need to drag heavy Generators, cords, or standalone drive units through wet concrete and dense rebar grids. Understanding the engineering and operational parameters that define a trulyjob site-ready backpack vibrator is essential for procurement managers and site superintendents aiming to optimize both labor efficiency and structural integrity.

How Backpack Concrete Vibrators Differ from Handheld Models

The primary distinction between handheld vibrators and backpack models lies in power output, weight distribution, and mobility. Handheld vibrators integrate the motor directly into the handle or the vibrating head itself. While highly portable, this design restricts the size of the motor, typically limiting handheld units to smaller vibrator heads (often under 1.5 inches in diameter) and shorter flexible shafts. Furthermore, holding the entire weight of the motor and shaft assembly in the arms accelerates operator fatigue during continuous pours.

Backpack Concrete Vibrators separate the power generation from the consolidation tool. The engine or battery pack—often weighing between 20 and 35 pounds—is secured to a high-tensile frame and distributed across the operator's hips and torso via a padded harness. This separation allows for the integration of much more powerful drive units, which can easily turn flexible shafts up to 14 feet long and drive heavier vibrator heads up to 2.5 inches in diameter. The operator only supports the weight of the whip hose and the head, drastically improving maneuverability and extending safe operational work periods.

Concrete Consolidation Tasks Best Suited to Backpack Vibrators

Backpack vibrators excel in applications where dragging power cables or pneumatic lines poses a safety hazard or physical impossibility. Elevated deck pours, expansive slab-on-grade foundations, and bridge deck overlays are prime environments for these units. In these scenarios, the operator must navigate a labyrinth of epoxy-coated rebar or post-tensioning cables without snagging trailing lines, making the self-contained nature of a backpack unit invaluable.

Additionally, retaining walls, columns, and deep footings require operators to consolidate concrete at significant depths. The ability of a backpack vibrator to power extended flexible shafts (often 10 to 14 feet in length) allows the operator to stand safely at the top of the formwork while dropping the vibrating head deep into the lift. This is particularly crucial for vertical pours where structural integrity relies on the seamless integration of successive concrete lifts without the formation of cold joints.

Operating Conditions That Require Professional-Grade Equipment

A professional-grade job site imposes extreme environmental and mechanical stresses that consumer-grade equipment cannot survive. Concrete dust is highly abrasive, and wet concrete is highly alkaline, presenting significant corrosion and wear challenges. A job site-ready backpack vibrator must feature sealed bearings, heavy-duty air filtration systems (for gas models), and ingress protection (IP) ratings suitable for direct water exposure during cleanup.

Operating conditions also dictate the power requirements of the unit. High-slump (highly fluid) concrete is relatively easy to consolidate, but structural requirements often call for low-slump, stiff mixes—sometimes with slump values as low as 1 to 2 inches. Consolidating low-slump concrete requires a vibrator capable of maintaining high torque under immense friction. Professional-grade backpack units are engineered to sustain continuous operation for 8 to 10 hours a day in ambient temperatures ranging from -10°C to 40°C, all without suffering from thermal overload or clutch failure.

Key Performance Specifications to Compare

Evaluating a backpack concrete vibrator requires a deep understanding of the physics of concrete consolidation. The effectiveness of a vibrator is not merely a function of its horsepower, but rather how efficiently it translates that power into mechanical energy within the concrete matrix.

Procurement decisions must be driven by quantifiable performance specifications. Matching the unit's frequency, amplitude, and power output to the rheology of the concrete mix and the geometry of the formwork ensures that the equipment will meet the structural demands of the project without causing segregation or excessive wear on the tool.

Vibration Frequency and Amplitude

Vibration frequency and amplitude are the two most critical metrics for any concrete vibrator. Frequency, measured in vibrations per minute (VPM), is responsible for fluidizing the finer particles in the mix, such as sand and cement paste. Job site-ready backpack vibrators typically operate within a frequency range of 10,000 to 14,000 VPM. If the frequency drops significantly under load, the concrete will not adequately fluidize, trapping air voids.

Amplitude refers to the maximum distance the vibrator head travels from its resting axis during a single vibration cycle. While frequency moves the fines, amplitude is the force that moves the heavy coarse aggregate. Standard amplitudes for backpack vibrator heads range from 0.04 to 0.12 inches. Low-slump concrete with large aggregate requires a head with higher amplitude to physically displace the heavy stones and allow the cement paste to encapsulate them.

Engine Output, Battery Capacity, Runtime, and Duty Cycle

The power source dictates the continuous operational capability of the unit. Gasoline-powered backpack vibrators generally utilize 4-stroke engines, such as the Honda GX35 or GX50, producing between 1.5 and 2.0 horsepower. This output is sufficient to maintain high VPM even when driving a 2.5-inch head deep into stiff concrete. However, gas engines require careful attention to duty cycles to prevent overheating of the centrifugal clutch assembly.

Battery-powered backpack vibrators have advanced significantly, utilizing 58V to 72V lithium-ion platforms with high-capacity battery packs ranging from 4Ah to 12Ah. A standard 8Ah battery can typically provide 45 to 90 minutes of continuous trigger time. Because vibrators are operated intermittently (inserted for 5-15 seconds at a time), a single charge can often last through half a shift of active pouring.

Shaft Length, Hose Flexibility, and Weight Distribution

The mechanical link between the backpack power unit and the vibrator head is the flexible shaft. Shaft lengths for backpack units typically range from 7 to 14 feet. A critical specification is the hose's minimum bend radius, which is generally around 6 to 8 inches. Bending the hose tighter than this radius during operation will cause the internal high-carbon steel core to bind against the outer casing, leading to rapid frictional heat buildup and catastrophic shaft failure.

Weight distribution is equally vital for operator endurance. The harness must feature rigid lumbar support and adjustable load-lifter straps. A well-designed harness transfers approximately 70% to 80% of the unit's 25 to 35-pound weight directly to the operator's hips, bypassing the spine and shoulders. This ergonomic requirement is strictly regulated on many union job sites to prevent musculoskeletal injuries during prolonged concrete placement operations.

Durability, Safety, and Maintenance Requirements

Heavy civil construction environments are notoriously unforgiving. Equipment is routinely dropped, dragged across abrasive rebar, and exposed to highly corrosive cement slurries. Consequently, the durability of a backpack concrete vibrator is a primary factor in calculating its return on investment.

Beyond simple ruggedness, job site safety regulations demand strict adherence to occupational health standards. Operators are exposed to localized vibration, high noise levels, and potentially hazardous exhaust fumes. A comprehensive evaluation of a backpack vibrator must balance its physical resilience with its ability to protect the operator and its ease of field maintenance.

Frame, Casing, Shaft, Seal, and Vibrator Head Materials

The structural integrity of a backpack vibrator begins with its frame. Professional units utilize lightweight, tubular aluminum or hardened steel frames to protect the engine or battery housing from impact. Casings are typically molded from high-impact, glass-filled nylon or polycarbonate polymers that resist both UV degradation and the chemical alkalinity of wet concrete.

The flexible shaft and vibrator head endure the most abuse. The outer casing of the whip hose is constructed from thick, abrasion-resistant neoprene or specialized rubber reinforced with internal wire braiding. The vibrator head itself is machined from hardened steel. High-wear applications often utilize heads treated with a chrome plating or specialized hard-facing to prevent the abrasive concrete aggregate from rapidly wearing down the head's diameter, which would consequently reduce its amplitude and radius of action.

Vibration Exposure, Noise Limits, Emissions, and PPE

Operator safety is heavily regulated regarding Hand-Arm Vibration Syndrome (HAVS). According to ISO 5349 standards, the daily exposure limit value for continuous vibration is generally set at 5 m/s². High-quality backpack vibrators utilize advanced isolation mounts between the engine/motor and the frame, as well as vibration-dampening grips on the flexible shaft, to keep the vibration transmitted to the operator's hands well below this threshold during a standard shift.

Noise and emissions are also critical compliance factors. Gasoline-powered backpack units typically generate ambient noise levels between 85 and 95 dB(A), necessitating the use of OSHA-compliant hearing protection. Furthermore, gas engines emit carbon monoxide (CO). Because OSHA limits permissible CO exposure to 50 parts per million (ppm) over an 8-hour time-weighted average, gasoline backpack vibrators are strictly prohibited for use in enclosed spaces, tunnels, or poorly ventilated basements, mandating the use of zero-emission battery-powered units in those environments.

Maintenance Access and Spare Parts Availability

Field serviceability determines a unit's uptime. The internal flexible core of the vibrator shaft requires regular lubrication to prevent friction fires. Maintenance protocols dictate that the core should be pulled, cleaned, and re-coated with a specialized lithium-based graphite grease every 50 to 100 operating hours. Backpack units designed with quick-disconnect couplings allow mechanics to swap out a damaged shaft in under two minutes without specialized tools.

The vibrator head also houses bearings that operate under extreme centrifugal force. These bearings are bathed in a specific volume of oil (often a synthetic 10W-30 or proprietary blend). The oil must be replaced approximately every 100 hours of operation. When selecting a backpack vibrator brand, procurement teams must verify the regional availability of these proprietary wear parts—specifically replacement flexible cores, vibrator heads, and specialized lubricants—to ensure that a $2,000 piece of equipment is not sidelined by the lack of a $50 bearing.

Best Practices for Crew Operation

Even the most advanced backpack concrete vibrator will fail to produce structurally sound concrete if operated incorrectly. The methodology of concrete consolidation is a precise science; relying on guesswork leads to severe structural defects that may require costly demolition and rework.

Site superintendents must train placement crews on the specific operational parameters of the equipment. This includes understanding the spatial dynamics of the vibrating head, adhering to strict insertion and withdrawal speeds, and recognizing the visual cues that indicate optimal consolidation without crossing the threshold into segregation.

Matching Vibrator Head Size, Insertion Spacing, and Concrete Mix

The size of the vibrator head must be carefully matched to the formwork dimensions, rebar spacing, and concrete slump. As a general rule of thumb, the radius of action (the area of concrete effectively consolidated around the head) is approximately four times the diameter of the vibrator head. For example, a 2-inch diameter head will have a radius of action of about 8 inches, creating a 16-inch total diameter of influence.

To ensure complete consolidation, insertions must overlap. Crews should space their insertions at approximately 1.5 times the radius of action. Using the 2-inch head example, insertions should be spaced every 12 inches across the grid. If the head is too large, it may become wedged in tight rebar grids; if it is too small, the crew will have to dramatically increase the number of insertions, slowing down the entire pour and risking cold joints.

Pre-Pour Inspection, Startup, and Operating Steps

Before the first truck begins discharging concrete, the operator must conduct a pre-pour inspection. For gas models, this includes checking engine oil levels, ensuring the air filter is free of concrete dust, and allowing a 3 to 5-minute warm-up period. For battery models, the operator must verify the state of charge and ensure the battery compartment is securely latched to maintain its IP rating. Crucially, the flexible shaft must be laid out to verify there are no kinks or sharp bends that exceed the minimum bend radius.

During operation, the vibrator head must be allowed to penetrate the concrete vertically under its own weight. Operators should never force or push the head into the mix, nor should they drag the vibrator horizontally through the concrete to move material. Dragging the vibrator horizontally separates the heavy aggregate from the cement paste, causing immediate localized segregation.

Preventing Under-Vibration, Over-Vibration, and Segregation

Finding the exact dwell time is the most critical skill for a vibrator operator. Under-vibration is the most common error, leaving entrapped air that drastically reduces the concrete's compressive strength (roughly a 5% loss in strength for every 1% of entrapped air). Conversely, over-vibration causes the heavy aggregate to sink to the bottom of the form while a weak, watery layer of cement paste (laitance) rises to the top, resulting in a fragile surface prone to scaling and cracking.

The standard dwell time for a single insertion ranges from 5 to 15 seconds, depending on the mix's slump. The operator must watch the surface of the concrete closely. The vibrator should be withdrawn as soon as three conditions are met: the concrete surface flattens and becomes highly reflective (a thin sheen of moisture appears), large air bubbles stop escaping to the surface, and the coarse aggregate blends evenly into the surface. Withdrawal must be slow—approximately 1 to 2 inches per second—to allow the fluid concrete to flow back together and fill the hole left by the vibrator head.

How to Choose the Right Backpack Concrete Vibrator

Procuring a fleet of backpack concrete vibrators requires a strategic analysis of upfront capital expenditures versus long-term operating costs. Different job sites have vastly different logistical constraints, and equipment that performs flawlessly on an open highway paving project may be completely unsuitable for high-rise commercial construction.

Decision-makers must look beyond the sticker price and evaluate the Total Cost of Ownership (TCO), environmental regulations, and the specific ergonomic needs of their labor force. Implementing a standardized procurement checklist ensures that the chosen equipment aligns with both project specifications and corporate profitability goals.

Total Cost of Ownership Versus Purchase Price

The initial purchase price of a backpack concrete vibrator represents only a fraction of its total cost of ownership. Gasoline-powered units typically require a lower initial investment, ranging from $800 to $1,500. However, they incur ongoing costs for fuel, oil changes, air filters, and spark plugs. Furthermore, the vibration from the internal combustion engine accelerates wear on the frame and harness components.

Battery-powered backpack vibrators command a higher premium upfront, often costing between $1,200 and $2,500 when factoring in the cost of high-capacity lithium-ion batteries and rapid chargers. Despite this, they offer a significantly lower TCO over a 3-to-5-year lifecycle. Battery units eliminate fuel costs and routine engine maintenance, saving contractors an estimated $300 to $500 per unit annually. However, buyers must factor in the eventual replacement cost of the batteries, which typically degrade to 80% capacity after 500 to 1,000 charge cycles.

Gasoline Versus Battery-Powered Models

The choice between gasoline and battery power is often dictated by the physical location of the job site. Gasoline units remain the standard for heavy civil and highway projects where charging infrastructure is non-existent and the ability to refuel a unit in 60 seconds keeps the pour moving without interruption. However, environmental regulations and noise ordinances in dense urban areas are increasingly restricting the use of internal combustion engines.

Battery-powered models are mandatory for indoor applications, deep foundation shafts, and poorly ventilated environments due to the lethal risk of carbon monoxide accumulation. They also feature instant push-button starting, eliminating the physical strain of pull-starting a gas engine while balanced on narrow formwork.

Final Procurement Checklist for Job Site Selection

Before issuing a purchase order, contractors should finalize a procurement checklist tailored to their specific fleet needs. First, verify the compatibility of flexible shafts and vibrator heads. Many manufacturers utilize proprietary quick-disconnect systems; standardizing on one brand prevents the costly siloing of incompatible hoses and heads across different job sites.

Second, scrutinize the warranty terms and local dealer support. A standard industrial warranty should cover the motor or engine for 1 to 3 years, though wear parts like shafts and heads are rarely covered beyond 30 days.

Key Takeaways

• Choose a backpack concrete vibrator when the pour requires high mobility across rebar, decks, walls, or large slab areas without dragging cords or drive units.
• Match the power unit to the shaft length and head diameter, since backpack systems can commonly support shafts up to 14 feet and heads up to about 2.5 inches.
• Prioritize harness comfort and weight distribution because the engine or battery pack may weigh 20 to 35 pounds during continuous job site use.
• Use mechanical vibration to remove entrapped air that can otherwise reach up to 20% of fresh concrete volume and weaken the finished structure.
• Evaluate durability, maintenance access, and accessory compatibility before purchasing so the vibrator can withstand concrete slurry, dust, and daily construction conditions.

Frequently Asked Questions

What is a backpack concrete vibrator used for?

A backpack concrete vibrator consolidates freshly poured concrete by removing entrapped air, improving strength, rebar bond, and surface quality. It is especially useful on decks, slabs, walls, columns, and footings where mobility is important.

Why choose a backpack vibrator instead of a handheld model?

Backpack models shift the engine or battery weight to the operator’s torso and hips, reducing arm fatigue. They can also drive longer flexible shafts and larger vibrator heads than many handheld units, making them better suited for demanding pours.

What features make a backpack concrete vibrator job site-ready?

Look for reliable power output, a durable frame, comfortable harness, compatible shaft and head sizes, easy starting, simple maintenance access, and protection against concrete slurry, dust, and vibration-related wear.

Where do backpack concrete vibrators perform best?

They perform well on elevated deck pours, bridge overlays, slab-on-grade work, retaining walls, columns, and deep footings—especially where cords, hoses, or standalone power units would snag on rebar or slow crews down.

How large of a vibrator head can a backpack unit support?

Many job site backpack vibrators can drive heavier heads up to about 2.5 inches in diameter, depending on the power unit and shaft setup. Always match the head size to the concrete mix, form spacing, and manufacturer guidance.
