When Should You Use an Internal Concrete Vibrator in Construction Projects?

Even a well-designed concrete mix can fail in the field if it is not properly consolidated. Fresh concrete often carries 5% to 20% entrapped air, and those hidden voids can weaken the finished member, expose reinforcement to corrosion, and leave honeycombing or bug holes on the surface. This article explains when internal, poker-style vibration is needed, how it works inside the mix, and what jobsite technique prevents both under-vibration and segregation. For contractors, site engineers, and equipment buyers comparing Concrete Vibrators and vibrating shafts, understanding the timing, frequency, and handling of these tools is essential to achieving durable, code-compliant concrete.

Why Internal Concrete Vibrators Matter

The structural integrity of cast-in-place concrete relies heavily on proper consolidation, a process that expels entrapped air and ensures dense, uniform material distribution. When freshly mixed concrete is poured into formwork, it naturally contains a significant volume of entrapped air voids—often ranging from 5% to 20% of the total volume, depending on the mix design and placement method. Internal Concrete Vibrators, commonly referred to aspoker or spud vibrators, are the primary mechanical tools used to eliminate these voids.

Deploying an internal vibrator is not merely a best practice; it is a structural necessity mandated by international building codes for most concrete applications. By temporarily altering the rheology of the fresh concrete mix, internal vibration allows the material to flow seamlessly around complex reinforcing steel assemblies and completely fill the formwork geometry, ultimately dictating the durability and load-bearing capacity of the finished element.

How Internal Vibrators Consolidate Fresh Concrete

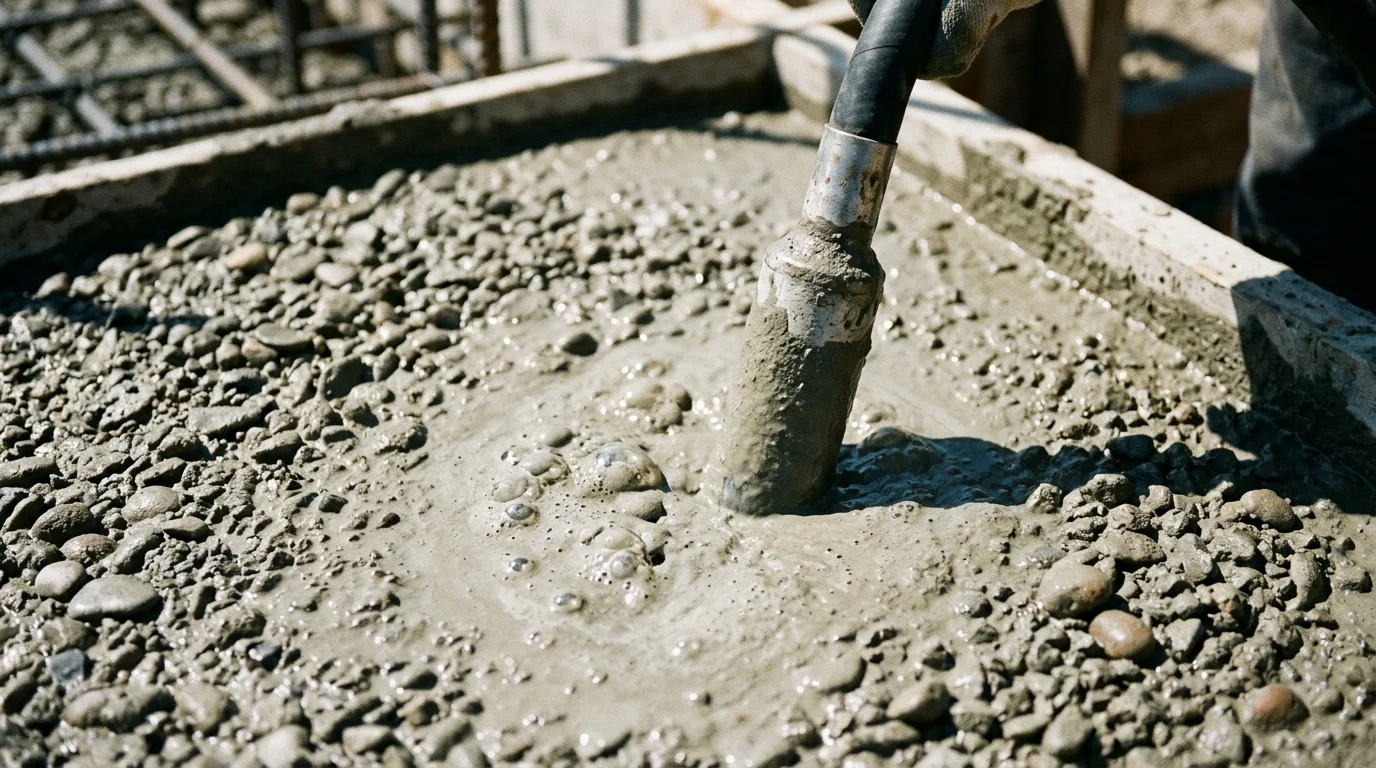

Internal vibrators operate by transmitting high-frequency mechanical impulses directly into the fresh concrete mass. When the vibrator head is immersed, the rapid oscillations—typically ranging from 10,000 to 17,000 vibrations per minute (vpm)—overcome the internal friction between the coarse and fine aggregates. This mechanical energy effectively liquefies the mortar portion of the mix, significantly reducing its yield stress.

As the concrete paste transitions into a highly fluid state, gravity forces the heavier aggregate particles to settle into a denser configuration. Simultaneously, the lighter entrapped air bubbles are displaced, rising to the surface to escape. The amplitude of the vibrator head, which is the maximum distance the head moves from its resting position, dictates the force of the impulses and the radius of action within the concrete matrix.

Defects Prevented by Proper Vibration

Failure to adequately consolidate concrete leads to critical structural and aesthetic defects that can compromise the lifecycle of the building or infrastructure. The most visually apparent defect is honeycombing, a condition where coarse aggregates are exposed without sufficient mortar to bind them, creating highly permeable zones that accelerate rebar corrosion. Bug holes, or surface air voids, are another common defect that, while sometimes only aesthetic, can indicate poor consolidation near the formwork interface.

More critically, inadequate vibration results in severe reductions in compressive strength. Empirical data demonstrates that for every 1% of entrapped air remaining in the concrete matrix, the compressive strength of the cured element drops by approximately 3% to 5%. Furthermore, poor consolidation can lead to cold joints between successive concrete lifts and compromised bond strength between the concrete and the reinforcing steel, directly reducing the structural payload capacity.

Why Technique Matters More Than Tool Choice

While specifying the correct vibrator is essential, the operational technique dictates the ultimate success of the consolidation process. A $3,000 high-frequency vibrator is rendered ineffective if the operator drags the head horizontally through the mix or withdraws it too rapidly. Horizontal dragging causes the coarse aggregate to separate from the cement paste, leading to severe segregation.

Proper technique requires the operator to allow the vibrator to penetrate the concrete rapidly under its own weight and then withdraw it at a slow, controlled rate—typically 1 to 1.5 inches per second. This controlled withdrawal allows the liquefied concrete to flow back into the void left by the vibrator head, preventing the formation of localized weak points. Technique ultimately bridges the gap between the theoretical capabilities of the equipment and the physical realities of the concrete pour.

When to Use an Internal Concrete Vibrator

Determining when to deploy an internal concrete vibrator requires an assessment of the structural element, the mix design, and the logistical constraints of the pour. While highly fluid mixes like self-consolidating concrete (SCC) have gained market share in specialized applications, conventional slump concrete remains the industry standard due to its cost-efficiency and predictable curing behavior. For these conventional mixes, internal vibration is universally required.

The decision to use an internal vibrator over other consolidation methods hinges on the geometry of the placement and the accessibility of the fresh concrete. Internal vibrators provide targeted, high-energy consolidation exactly where it is needed, making them the most versatile tool in a contractor's inventory.

Best Applications for Internal Vibration

Internal vibration is the default consolidation method for vertically cast elements such as walls, columns, piers, and deep structural beams. In these applications, the depth of the formwork makes external or surface vibration highly inefficient or completely ineffective. Internal vibrators can be lowered deep into the formwork, ensuring that the concrete at the base of a 15-foot column receives the same level of consolidation as the concrete at the top.

In mass concrete placements, such as dam construction or large mat foundations, heavy-duty internal vibrators (often gang-mounted on excavators or tractors) are utilized to consolidate massive volumes of low-slump concrete rapidly. Even in horizontal flatwork, such as thick suspended slabs or bridge decks, internal vibrators are frequently used ahead of the paving machines or screeds to ensure consolidation around heavy rebar mats and post-tensioning ducts.

How Slump, Aggregate, Rebar, and Lift Depth Affect Use

The physical properties of the concrete mix and the spatial constraints of the formwork dictate the specific type of internal vibrator required. Concrete with a low slump (e.g., 1 to 3 inches) exhibits high internal friction and requires a vibrator with high amplitude to effectively mobilize the aggregates. Conversely, higher slump mixes (5 to 7 inches) are more easily fluidized and require careful, brief vibration to prevent segregation.

The size and spacing of the reinforcing steel (rebar) directly limit the maximum diameter of the vibrator head. The head must be small enough to pass freely through the rebar grid without becoming lodged; a clearance of at least 0.5 inches between the vibrator head and the tightest rebar spacing is a standard operational threshold.

Lift depth is another critical parameter. Standard practice dictates that concrete should be placed in horizontal lifts not exceeding 12 to 20 inches in depth. The internal vibrator's head length must exceed the lift depth to allow it to penetrate 6 inches into the underlying, still-plastic lift, thereby knitting the two layers together and preventing cold joints.

Internal vs External vs Surface Vibration

Selecting between internal, external, and surface vibration depends entirely on the element geometry and the mix design. External vibrators are clamped to the outside of the formwork, while surface vibrators (like vibrating screeds) are applied directly to the top of a poured slab.

Internal vibration remains the most energy-efficient method because 100% of the mechanical energy is transferred directly into the concrete mass, whereas external vibration loses significant energy to the formwork structure itself.

Key Internal Concrete Vibrator Specifications

Specifying the correct internal concrete vibrator requires a rigorous analysis of the equipment's physical dimensions and mechanical output. A mismatched vibrator can lead to catastrophic formwork failure from excessive pressure, or conversely, severe honeycombing due to under-vibration. Equipment managers and concrete foremen must evaluate a matrix of specifications to match the tool to the specific mix design and formwork geometry.

The primary metrics of internal vibrator performance are frequency, amplitude, and centrifugal force, all of which scale with the physical size of the vibrator head and the power capacity of the drive unit.

Head Diameter, Frequency, Amplitude, and Radius of Action

The diameter of the vibrator head is the primary determinant of its consolidation capacity. Head diameters typically range from 0.75 inches (for highly congested, intricate precast work) up to 6 inches (for mass concrete in dams). The radius of action—the radial distance from the vibrator head within which the concrete is effectively consolidated—is generally calculated as three to four times the head diameter.

Frequency (vpm) determines how quickly the impulses are delivered, which is crucial for liquefying the cement paste. Amplitude determines the physical displacement of the head, which is required to move heavier coarse aggregates. High-frequency, low-amplitude vibrators are ideal for high-slump mixes, whereas low-frequency, high-amplitude vibrators are necessary for stiff, low-slump mass concrete.

Power Source, Shaft Length, and Hose Layout

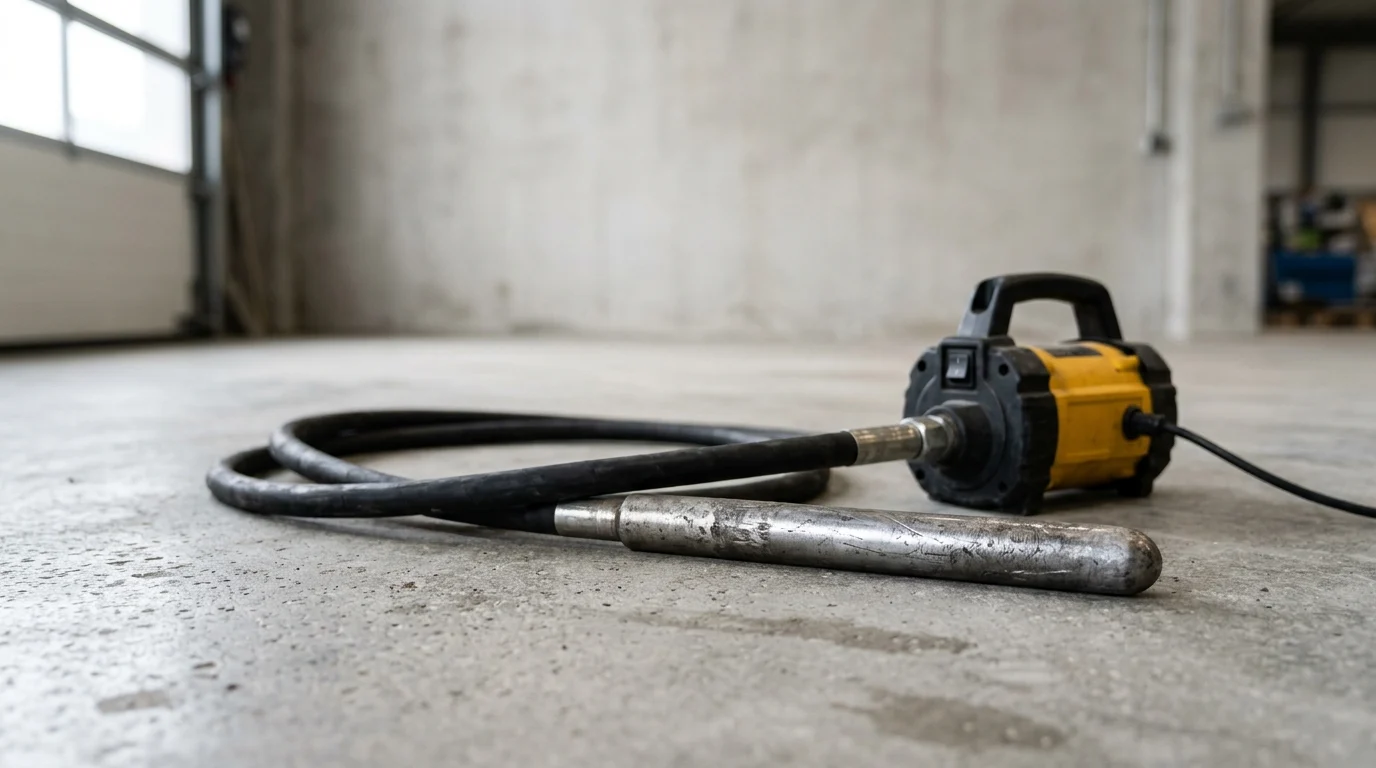

The power source dictates the vibrator's operational mobility, sustained output, and suitability for specific site conditions. Electric flex-shaft vibrators (operating on standard 115V or 230V) are the most common in commercial construction due to their reliability and lower upfront cost. High-cycle electric vibrators, which place the motor directly inside the head, operate at higher frequencies (up to 400 Hz) and eliminate the need for a flexible drive shaft, making them ideal for sustained, heavy-duty use.

Pneumatic vibrators require a continuous air supply (typically 80 to 100 psi and up to 120 CFM) but offer extreme durability and continuous operation without overheating, making them favored in heavy civil infrastructure. Gas-powered backpack vibrators offer maximum mobility for flatwork and remote sites without access to temporary power.

Shaft lengths must be specified based on the formwork depth. Flexible shafts are available in lengths ranging from 2 feet to over 21 feet. When longer reaches are required, multiple shafts can sometimes be coupled, though this increases mechanical wear and reduces the torque delivered to the head.

Safety, Noise, Ergonomics, and Durability

Prolonged exposure to heavy vibration presents significant occupational health risks, primarily Hand-Arm Vibration Syndrome (HAVS). Modern internal vibrators are engineered with vibration-dampening handles and insulated shafts to keep operator exposure below the OSHA and EU directive action values (typically 2.5 m/s² over an 8-hour shift).

Noise generation is another critical specification, particularly for indoor or urban projects. Pneumatic vibrators can easily exceed 100 dB, requiring strict hearing protection protocols, whereas high-cycle electric units generally operate at a quieter 80 to 85 dB.

Durability specifications focus on the vibrator head's housing. High-wear applications, such as mixes containing highly abrasive aggregates like crushed granite, require hardened steel or specialized polyurethane-coated heads to prevent premature erosion of the casing.

How to Use an Internal Concrete Vibrator Correctly

The efficacy of an internal vibrator is entirely dependent on the execution protocols enforced on the job site. Even the highest-specification equipment will fail to consolidate concrete properly if the operator lacks training or ignores fundamental placement physics.

Standard operating procedures must govern the insertion patterns, timing, and coordination with the concrete delivery schedule. A systematic approach ensures uniform consolidation and mitigates the risks of both under-vibration and over-vibration.

Insertion Spacing, Penetration Depth, and Dwell Time

The geometric pattern of vibrator insertion must ensure overlapping radii of action. Insertions should be spaced at a distance approximately 1.5 times the radius of action. For example, if a 2-inch vibrator has a radius of action of 8 inches, insertions should be spaced no further than 12 inches apart. The vibrator must be inserted vertically; inserting it at an angle reduces its depth of influence and increases the risk of the head becoming entangled in the rebar.

Penetration depth is equally critical. The vibrator head must pass completely through the current lift and penetrate a minimum of 6 inches into the preceding lift, provided the lower lift is still in a plastic state. This action physically blends the two layers, eliminating cold joints.

Dwell time—the duration the vibrator remains at the bottom of the insertion—typically ranges from 5 to 15 seconds. The operator must watch the surface of the concrete; when a thin sheen of mortar appears and large air bubbles stop breaking the surface, the concrete is adequately consolidated. The withdrawal must be slow and steady, at a maximum rate of 1 inch per second, to ensure the hole closes completely.

Coordination with Concrete Delivery and Lift Placement

Consolidation must remain synchronized with the concrete delivery and placement rates. The volume of concrete placed per hour cannot exceed the total consolidation capacity of the vibrators in operation. If a pump truck is delivering 40 cubic yards per hour, and the site is using 2-inch vibrators with a capacity of 10 cubic yards per hour each, a minimum of four vibrators (and operators) must be active simultaneously.

Concrete should be placed as close to its final position as possible. A common and highly destructive error is using the internal vibrator to move concrete laterally within the formwork. This practice strips the cement paste from the coarse aggregate, causing severe segregation and localized structural weakness. The vibrator is a consolidation tool, not a placement tool.

Signs of Under-Vibration and Over-Vibration

Visual indicators are the primary method for assessing consolidation adequacy in real-time. Signs of under-vibration include a dull, rocky surface texture, the continued emergence of large (greater than 0.25-inch) air bubbles, and a lack of subsidence in the concrete mass. Under-vibrated concrete will inevitably exhibit honeycombing once the forms are stripped.

Conversely, over-vibration is equally detrimental, particularly in high-slump or highly plasticized mixes. Signs of over-vibration include the accumulation of a thick layer of frothy laitance (water and fine cement) on the surface, and the visible sinking of coarse aggregates. Over-vibration can also generate excessive hydrostatic pressure against the formwork, potentially exceeding the forms' rated capacity (e.g., 1,000 psf) and causing a blowout.

How to Specify, Rent, or Buy an Internal Vibrator

Procuring internal concrete vibrators requires a strategic analysis of project duration, frequency of use, and capital allocation. Equipment managers must evaluate the total cost of ownership against the immediate needs of the construction schedule.

Whether specifying equipment for a single high-rise core or maintaining a fleet for a heavy civil contracting firm, understanding the lifecycle costs and maintenance requirements is essential for optimizing return on investment.

Cost, Utilization, and Maintenance Factors

Capital expenditures for internal vibrators range significantly based on the technology. A basic 115V electric motor with a flexible shaft and a 1.5-inch head typically costs between $400 and $800. In contrast, heavy-duty high-cycle electric vibrators, which require specialized frequency inverters, can range from $1,500 to $3,500 per unit. Pneumatic vibrators fall in the middle but require the hidden cost of a high-capacity towable air compressor.

Rental costs for standard flex-shaft vibrators generally average $40 to $75 per day, or $150 to $250 per week. For short-duration projects or specialized placements requiring unusually large vibrator heads, renting is highly cost-effective.

Maintenance costs must be factored into the lifecycle analysis. Flexible shafts require regular lubrication—typically every 50 to 100 operating hours—to prevent internal friction from melting the rubber casing. Vibrator heads must be inspected for dimensional wear; a reduction in head diameter of just 10% can reduce the consolidation efficiency by over 20%.

Specification and Inspection Planning

Rigorous inspection protocols are mandatory prior to any major concrete pour. A pre-pour checklist should include verifying the electrical continuity of cords, checking the tightness of the head-to-shaft coupling, and ensuring backup vibrators are immediately available on the deck. Industry standards dictate that at least one standby vibrator must be present for every three active units.

During operation, the frequency of the vibrator should be periodically verified using a vibrating reed tachometer. When the vibrator is immersed in the concrete (under load), the frequency should not drop by more than 10% to 20% from its free-air rating. A larger drop indicates that the motor is undersized for the stiffness of the mix or is nearing mechanical failure.

Decision Framework for Project Teams

Project teams require a formalized decision framework to optimize vibrator selection. If the project demands sustained, continuous pouring over several months (e.g., slip-forming a silo or paving a highway), purchasing high-cycle electric or pneumatic vibrators is justified by their superior duty cycles and lower risk of mid-pour failure.

For commercial contractors performing frequent but intermittent pours, owning a fleet of modular flex-shaft electric vibrators offers the best ROI, provided the utilization rate exceeds approximately 40%. The modularity allows shafts and heads to be swapped as needed. Ultimately, the cost of the vibrator is negligible compared to the cost of structural remediation; investing in the correct equipment and maintaining redundant units is the most effective form of risk management in concrete construction.

Key Takeaways

• Use an internal concrete vibrator for most structural cast-in-place pours where trapped air, dense reinforcement, or complex formwork could compromise consolidation.
• Fresh concrete may contain 5% to 20% entrapped air, so mechanical vibration is critical for achieving dense, uniform concrete.
• Each 1% of air left in hardened concrete can reduce compressive strength by about 3% to 5%, making consolidation a direct structural performance issue.
• Operate the vibrator at typical high-frequency ranges of about 10,000 to 17,000 vpm and match the head size to the formwork and rebar spacing.
• Insert the vibrator vertically, overlap insertion points, and withdraw slowly instead of dragging the head horizontally through the mix.
• Stop vibrating when air bubbles subside, the concrete surface becomes uniformly glossy, and the mix has visibly settled without signs of segregation.

Frequently Asked Questions

What is an internal concrete vibrator used for?

An internal concrete vibrator consolidates fresh concrete by removing trapped air and helping the mix flow around rebar and into formwork. This improves density, bond strength, durability, and the finished surface quality of cast-in-place concrete.

When is internal vibration necessary on a construction project?

Use internal vibration when placing structural concrete, reinforced members, columns, walls, beams, slabs, foundations, or any pour where air voids, congested rebar, or complex formwork could reduce strength and durability.

How much strength can trapped air remove from concrete?

Entrapped air can significantly reduce performance. As a practical rule, every 1% of air left in the concrete may reduce compressive strength by about 3% to 5%, making proper consolidation essential for structural work.

What is the correct way to use a poker vibrator?

Insert the vibrator vertically, let it work in place, overlap insertion zones, and withdraw it slowly. Do not drag the head horizontally through the concrete, because this can cause segregation and uneven aggregate distribution.

Can concrete be over-vibrated?

Yes. Excessive vibration can cause segregation, with heavier aggregates settling and paste or water rising. Stop once large air bubbles cease, the surface becomes glossy, and the concrete has settled uniformly.
